chemplants – Symbology to draw chemical plants with TikZ

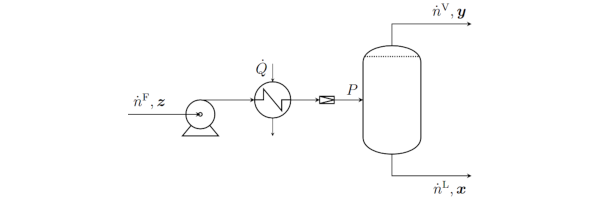

This package offers tools to draw simple or barely complex schemes of chemical processes. The package defines several standard symbols and styles to draw process units and streams. The guiding light of the package is the UNICHIM regulation.
All of the symbols and styles are defined using tools of the TikZ package, thus a basic knowledge of the logic of this powerful tool is required to profitably use chemplants.
|Licenses||The LaTeX Project Public License 1.3c|
|Copyright||2018–2019 Elia Arnese Feffin|
|Maintainer||Elia Arnese Feffin|
|Contained in||TeX Live as chemplants|
MiKTeX as chemplants
Download the contents of this package in one zip archive (869.1k).
