yquant – Typesetting quantum circuits in a human-readable language

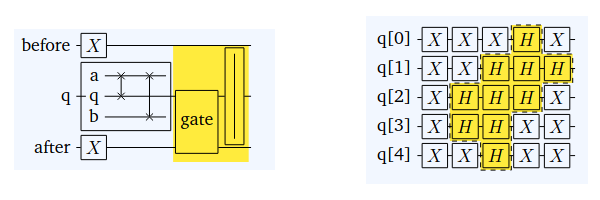

This LaTeX package allows to quickly draw quantum circuits.
It bridges the gap between the two groups of packages that already exist: those that use a logic-oriented custom language, which is then translated into TeX by means of an external program; and the pure TeX versions that mainly provide some macros to allow for an easier input.
yquant is a pure-LaTeX solution — i.e., it requires no external program — that introduces a logic oriented language and thus brings the best of both worlds together. It builds on and interacts with TikZ, which brings an enourmous flexibility for customization of individual circuit.
Quellen | /graphics/pgf/contrib/yquant |
Dokumentation | |
Home-Page | https://github.com/projekter/yquant |
Fehlermeldungen | https://github.com/projekter/yquant/issues |
Version | 0.7.5 2023-11-26 |
Lizenzen | The LaTeX Project Public License 1.3c |
Copyright | 2019–2023 Benjamin Desef |
Betreuer | Benjamin Desef |
Enthalten in | TeX Live als yquant MiKTeX als yquant |
Themen | Schaltkreisdiagramme Grafiken PGF/TikZ |
Herunterladen des vollständigen Inhalts dieses Pakets in einem Zip-Archiv (921.1k).
