pst-hertz – Draws the electromagnetic field of a Hertzian Dipole

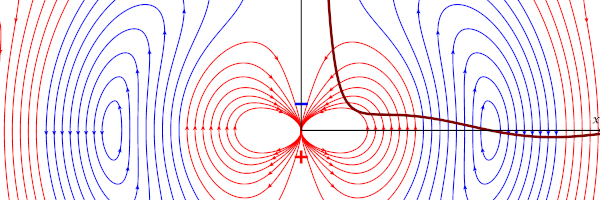

Many authors have created visualizations of the electromagnetic field radiated by a Hertzian dipole; the version by Raimund V. Girwidz is the most comprehensive. This package offers several options to plot the field of a Hertzian dipole. It runs with lualatex or the sequenz latex → dvips → ps2pdf. The last variant is to be preferred for animations, owing to the heavy calculations.

Download the contents of this package in one zip archive (90.6M).
