pst-gears – Drawing internal and external gears

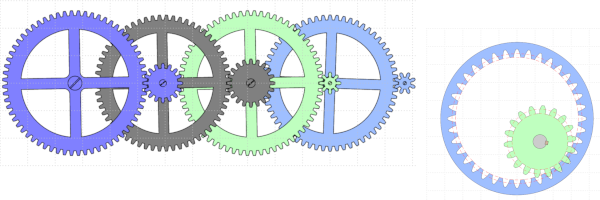

The macro \pstgears[options](x,y) allows, among other things, the drawing of a gear consisting of two or more external gears whose profile is an involute arc.
| Sources | /graphics/pstricks/contrib/pst-gears |
| Documentation | |
| Version | 0.61 |
| Licenses | The LaTeX Project Public License |
| Maintainer | Herbert Voß |
| Contained in | TeX Live as pst-gears MiKTeX as pst-gears |
| Topics | PSTricks Graphics |
Download the contents of this package in one zip archive (43.8M).
