ReoTeX – Draw Reo Channels and Circuits

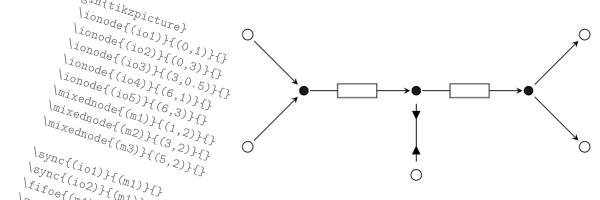

The package defines macros and other utilities to design Reo Circuits. The package requires PGF/TikZ support.
| Sources | /graphics/pgf/contrib/reotex |
| Documentation | |
| Version | 1.1 2014-08-13 |
| Licenses | The LaTeX Project Public License |
| Maintainer | Nuno Oliveira |
| Contained in | TeX Live as reotex MiKTeX as reotex |
| Topics | PGF TikZ Diagrams |
