tikzpfeile – Draw arrows using PGF/TikZ

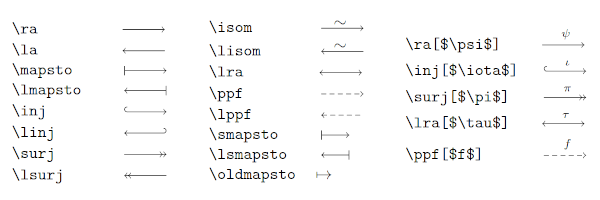

In a doc­u­ment with a lot of di­a­grams cre­ated with PGF/TikZ, there is a pos­si­bil­ity of the reader be­ing dis­tracted by dif­fer­ent sorts of ar­row­heads in the di­a­grams and in the text (as, e.g., in \rightar­row). The pack­age de­fines macros to cre­ate all ar­rows us­ing PGF/TikZ, so as to avoid the prob­lem.

Sources /graphics/pgf/contrib/tikzpfeile
Ver­sion 1.0
Li­cense The Project Public Li­cense
Copy­right 2011–2012 Jonathan Zach­hu­ber, Michael Füt­terer
Main­tainer Michael Füt­terer
Jonathan Zach­hu­ber
Con­tained in TeX Live as tikzpfeile
MiKTeX as tikzpfeile
Topics cre­ate sym­bols, rather than se­lect from a font

Down­load the con­tents of this pack­age in one zip archive (49.8k).
