pst-optexp – Drawing optical experimental setups

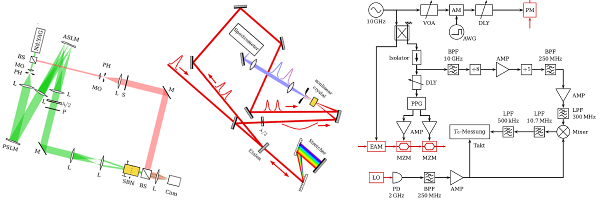

The pack­age is a col­lec­tion of op­ti­cal com­po­nents that fa­cil­i­tate easy sketch­ing of op­ti­cal ex­per­i­men­tal se­tups. The pack­age uses PSTricks for its out­put.

A wide range of free-ray and fi­bre com­po­nents is pro­vided, the align­ment, po­si­tion­ing and la­belling of which can be achieved in very sim­ple and flex­i­ble ways. The com­po­nents may be con­nected with fibers or beams, and re­al­is­tic ray­traced beam paths are also pos­si­ble.

Sources /graphics/pstricks/contrib/pst-optexp
Re­pos­i­tory https://github.com/cber­sch/pst-op­t­exp
Ver­sion 5.2 2014-11-26
Li­cense The Project Public Li­cense 1.3
Copy­right 2007–2014 Christoph Ber­sch
Main­tainer Christoph Ber­sch
Con­tained in TeX Live as pst-op­t­exp
MiKTeX as pst-op­t­exp
Topics schematic de­tails of lab­o­ra­tory work
di­a­grams of op­ti­cal sys­tems
pack­age us­ing PStricks for graph­i­cal out­put

Down­load the con­tents of this pack­age in one zip archive (3.5M).
